I-250l iqokelele yomatshini wokuvola

Model:KGB120E

Oku kuvulwa okumiselweyo kunye nokuvala ukuviwa komatshini, kunomdlalo ophindwe kabini kwi-rod rod synchronous i-cling kunye ne-oyile cylinder uxinzelelo lokungasebenzi, ukuhambisa ukusebenza kakuhle kunye nokusebenza kakuhle. Ixhotywe ngenkqubo ye-hydralic senvo yempendulo ekhawulezileyo kunye nokonga kwamandla, oku kuqokelela umatshini we-250l oqokelayo okugqobhoza uluhlu olubanzi lweemveliso, ukusuka kwizikhongozeli ezincinci kumanqanaba amakhulu.

Umthamo: 250lUbunzima: 28t

Thumela uMbuzo

Ingcaciso yeMveliso

Imodeli esemgangathweni yeKGB120E, intloko efundiswayo entloko inkxwaleko, Kubandakanya i-moog ye-MOOG 100 ingalo, ingalo yerobhothi, kunye nezantsi Inkqubo, ukwandisa imveliso kunye nomgangatho. Le lelokuqhutywa ngophawu lwe-250l ye-250l Kwizicelo ezahlukeneyo, kubandakanya umgubo wekhemikhali wokubetha Izisombululo, i-pallets zeplastiki zivuthuza iinkqubo zoomatshini, amanzi eplastiki I-Tank Volling Appling Matshini izicelo, kunye nemveliso ka-200-220l Iibhanti zekhala ezimbini, iitanki zemoto, iinxalenye ezizenzekelayo, izithintelo zendlela Ifanitshala, i-zuys edadayo, izitulo, iitafile, iipalethi, izikhephe, nangaphezulu.

Inkcazo

Inombolo yesiriyeli	I-PE, iphep, abs ...	Isilinda esivale i-oyile (isilinda esinye)
Inombolo yesiriyeli	I-PE, iphep, abs ...	Imodeli yomatshini: I-KGB120E
Inkcazo
1	Umthamo weShent yeAx	I-250 l
2	Iziphumo (umjikelo owomileyo)	I-300 PC / hr

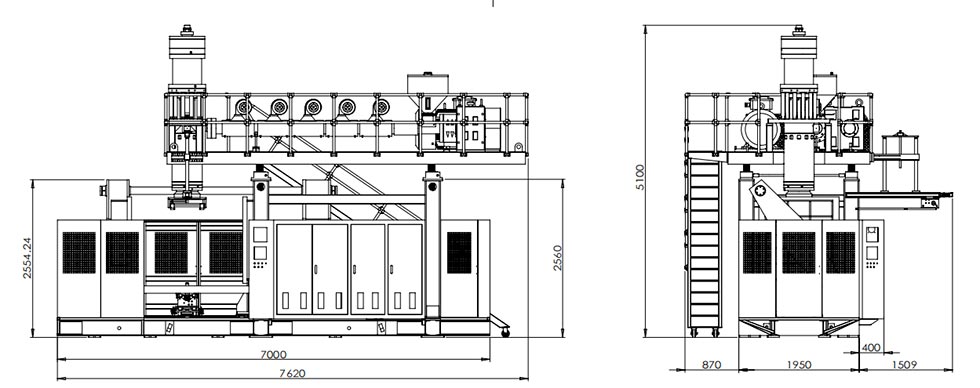

3	Ubungakanani boMatshini (l × × h)	7.6 m x 4.3 m X5.5 m
4	Ubunzima boMatshini	28 t
Iyunithi yokutyhola
1	Ukunyanzelwa	I-800 ye-KN-1200nn
2	Ubungakanani be-Worting Platen (× h)	I-1300 mm x 1400mm
3	Iipleyiti zokuvula ukubetha	I-800 mm-1800 mm
4	Ukubetha	I-700 mm
5	Ubungakanani bobumba (× h)	I-1100 mm x 1700 mm
6	Ubunzima bomnyama	I-810 mm - 900 mm
Amandla
1	I-servo ye-oyile yeposti	37 kW
2	Isibonelelo	I-250 l / min
3	Uxinzelelo lwexinzelelo	I-0.8 MPA
4	Ukusetyenziswa komoya	I-1.8 M³ / min
5	Uxinzelelo lwamanzi alupholayo	I-0.3 MPA
6	Ukusetyenziswa kwamanzi	I-120 l / min
7	I-avareji yokusetyenziswa kwamandla	I-80 kw -90 kW
Iyunithi ye-Experruder
1	Ububanzi be-screw	I-120 mm
2	Isikere l / d umlinganiselo	25 l / d
3	I-HDpemelting ye-HDPECIT ye-HDPE	I-250 kg / hr-320 kg / hr
4	Inani lendawo yokufudumeza	I-6 yoMda
5	Isikhuseli sokufudumeza	30.2 kW
6	I-screw fan fan fan	I-0.6 kw
7	Amandla emoto yangaphandle	I-90 (110) kw
Intloko yokufa
1	Inani lamacandelo ashushu	I-5 yendawo
2	Ukufudumeza Amandla	38.8 Kh
3	I-max diemer	I-600 (700) mm
4	Umthamo oCwantiweyo	20 (25) l
5	(I-PE) Ubunzima be-accumulator	15 (18) kg

Iimpawu kunye nezibonelelo

Isetyenziselwa ukwenza iimveliso ezenziweyo kumashishini ahlukeneyo. Nokuba liyizikhongozelo ezinkulu zokungaziphathi kakuhle kwishishini lekhemikhali, iibhotile ezihamba ngendlela ecocekileyo kwishishini lokutya, okanye iibhokisi zokupakisha ngemveliso yekhemizi lemichiza, inokulawulwa ngokuchanekileyo ukuze ihambelane neemfuno ezahlukeneyo zentengiso.
Inkqubo yokondla, yamkela itekhnoloji yokusika-edayo kwaye ilungiswe ngokusekwe kwiimpawu zemveliso ephezulu ye-120e yomoya wokubetha. Ukulawula ngokuchanekileyo ireyithi yokuhamba kunye nokusasazwa kwezinto ezingafunekiyo ukuqinisekisa ubuncwane obungudonga lwevolumu ngexesha lokubumba iimveliso zevolumu, kwaye zomeleze iziphene zemveliso, kunye nokuphelisa iziphene ezisemgangathweni ezibangelwa kukutya okungalinganiyo.

Iindawo zesicelo

I-max i-220l-krinda i-ring evulekileyo okanye i-picker yekhemikhali ephezulu / idrum / barrel; Iinxalenye ze-Auto / iRistrict Arriers / i-DARY / ithoyi / ifenitshala / iPallet
