I-30l isitishi esiphindwe kabini kuvuthuza umatshini wokubumba

Model:KGB100DB

I-KGB100DB yi-Ageped Shoppes yesikhululo se-30l Shinal Shest Sobung, ihlaziywe ukuze isetyenziselwe ukuveliswa komchwephesha okuphezulu. Yenzelwe izitayile zeplastiki eziphindwe kabini zeplastiki, njengeYerrycans kunye neziqulatho zekhemikhali, iqinisekisa umgangatho ongaguqukiyo kunye nokusebenza kakuhle.

Umthamo: 30lUbunzima: 23T

Thumela uMbuzo

Ingcaciso yeMveliso Specification Application

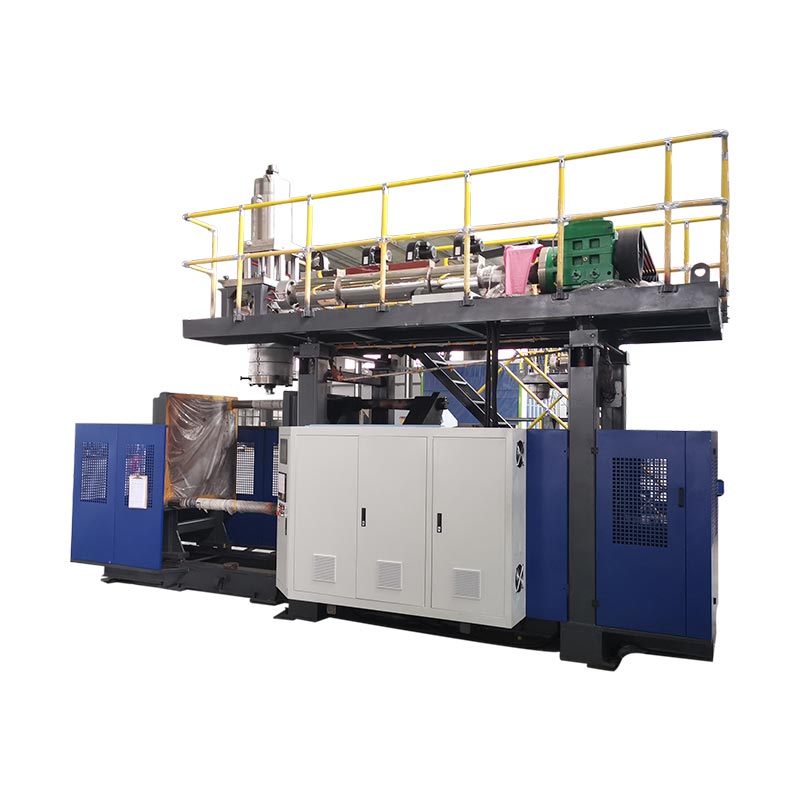

I-KGB100DB i-30l isitishi esiphindwe kabini kuvuthuza umatshini wokubumba, suite ye ezo mveliso ziphezulu zesantya esiphezulu sokulawula ubukhulu bokulawula abathengi. Ayisiyiyo kuphela imilo eqhelekileyo, imilo ekhethekileyo ifanelekile ngakumbi Kule modeli ukubetha komatshini wokubumba. Kubandakanya ubungqingqwa be-100 Ingalo, ingalo yerobhothi, kunye nenkqubo esezantsi yokubetha, ekhuthaza imveliso kwaye Umgangatho wemveliso.

Iimpawu kunye nezibonelelo

Qokelela intloko ngesikhululo esiphindwe kabini
Ukuvula okuvulekileyo kokuvula kunye nokuvalwa kwendlela yokuvala: Ixhotywe ngenkqubo ye-tie ye-tie ye-tie ye-tie yokuvala i-chie ye-chie ye-chie kunye nendawo yokutsalwa kabini yomatshini, ukuqinisekisa ukulungelelaniswa okuqinisekileyo kunye nokuzinza komhlaba. I-cylinder yeoyile isebenza ngokuthe ngqo uxinzelelo lokungafikeleli.
Ukugcina i-Cylinder Fie SEE CHECE YENKCAZO: Yenzelwe ukuhamba kwezinto ezibonakalayo kunye nemveliso ephezulu yemveliso ephezulu.
Umthamo omkhulu: Ixhasa ivolumu yemveliso ephezulu ye-120l, eyenza ilungele ukuvelisa izitya ezinkulu nezixhobo zeshishini.
I-Hydraulic sensoction Inkqubo: Iimpawu ze-hydraulic senmoulic sensoulic, ihambisa impendulo yesenzo, ukusebenza kwamandla aphezulu, kunye nokuncitshiswa kweendleko zomsebenzi.

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB100DB
Specifications
1	Max container capacity	30 L
2	Output(dry Cycle)	650 PC/HR x 2 PC/HR
3	Machine Dimension(L×W×H)	6.4 M x 6.2 M x 4 M
4	Machine weight	23T
Clamping Unit
1	Clamping force	215 KN
2	Mold platen size(W×H)	750MM×860 MM
3	Platen openingstroke	350 MM -850 MM
4	Platen moving stroke	/
5	Max mold size(W×H)	520 MM ×860 MM
6	Mold thickness	360 MM -420 MM
Power
1	Servooil pump motor power	11 KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	0.7 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	45 KW - 60 KW
Extruder unit
1	Screw diameter	100 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	160 Kg/hr -200 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	22.4 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	55 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	22.8 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	5 L
5	(PE)Accumulator weight	3.75 KG
