I-1000l IBC yamanzi aqokelela umatshini wokuvuthuza

Model:KGB1000L- IBC

Amava amandla kunye nokuzinza kweetanki zamanzi yeKGB1000l IBC Qokelela umatshini wokuvuthuza, ukubonakalisa ubunzima kakhulu kwiitoti ezingama-55 ukunciphisa i-tibration kunye nokususwa. I-diagonal iphindwe kabini iintonga ze-tieonal kunye nenqanaba le-clist ezintathu ze-clamping qinisekisa ukuqhutywa koxinzelelo kumbungu, ukwandisa ukuchaneka kwemveliso.

Umthamo: 1000lUbunzima: 55T

Thumela uMbuzo

Ingcaciso yeMveliso Specification Application

Ezi ntente zamanzi ezi-1000l IBC I-Ibk yamanzi eqokelela ngomatshini wokuvuthuza ebandakanya imigaqo-siseko yetekhnoloji yokutyumza iteknoloji kunye nemveliso emininzi yokuncitshiswa kweendleko kunye nokuqhekeka kwemveliso. Ilungele ukuvelisa izikhongozeli ezinkulu zetanki, kubandakanya itanki ye-TAK yamanzi, lo matshini wenzelwe ngokukodwa kwimigqomo ye-IBC ukuya kwi-1000l, eyenza ilungele ukuvelisa imiphetho yephakheji, iitanki ezinkulu zemoto, nangaphezulu. Nxibelelana nathi namhlanje kwi-quate ehleliweyo kwaye uphonononge i-TAK YAKHO YOKUGQIBELA YAMANZI AMANQAKU E-TAK.

Iimpawu kunye nezibonelelo

Izixhobo ezizonke zinokufikelela kwiitoni ezingaphezulu kwe-55, ukunciphisa ukusebenza ngokufanelekileyo kunye nokususwa koomatshini, kunye nokuphucula ukuchaneka kwemveliso kunye nozinzo.
● I-diagonal iphindwe kabini ngeentonga kunye ne-Central Cylinder ye-Cylindter ye-clip, itemplate igxininisile kwaye ayinalwazi ngokulula
● Ukuveliswa kwamaqela amaninzi kunciphisa iindleko zemveliso kwaye kuphucula ukuqina kwemveliso
● Kufanelekile ukwenziwa kwemveliso yeemveliso zeplastiki ezifana neitora zamanzi, iitanki zokugcina, izikhongozeli zekhemikhali, njl.

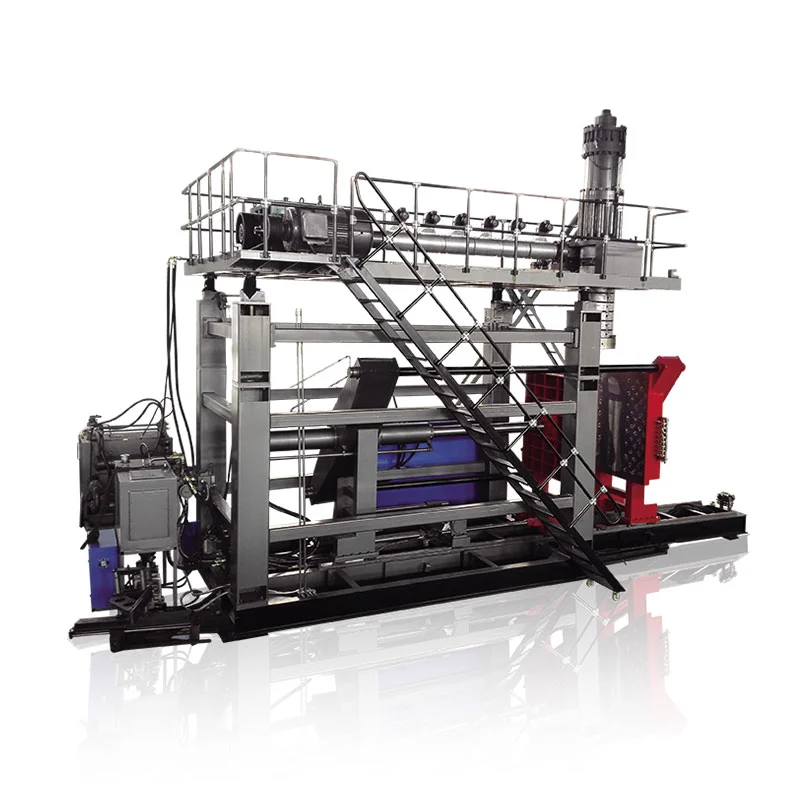

1000L IBC water tanks accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGS1000L-IBC
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	150 L

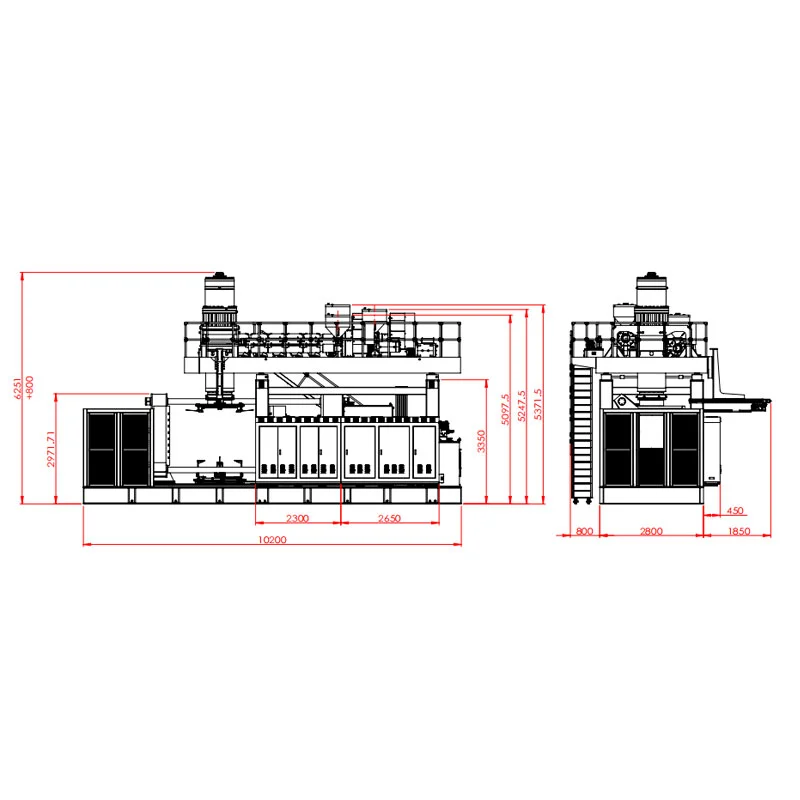

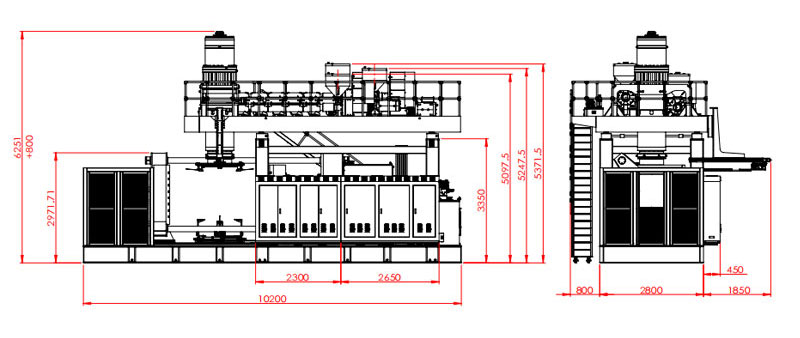

3	Machine Dimension(L×W×H)	9.5 M x 5.1 M x 6.5 M
4	Machine weight	55 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1800 MM x 1600 MM
3	Platen opening stroke	1150 MM - 2700 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1600 MM x 1500 MM
6	Mold thickness	1200 MM - 1400 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	2 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW - 150 KW
Extruder unit
1	Screw diameter	100 MM x 2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	45 L
5	(PE)Accumulator weight	33 KG
