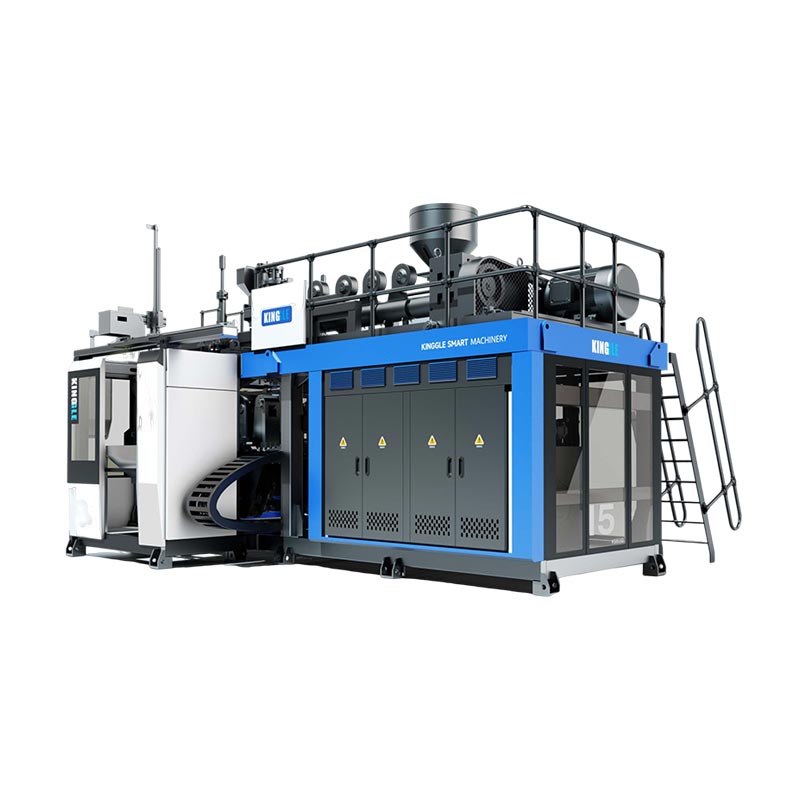

I-15L isikhululo soloyiso lokubetha

Model:KGB15L

Yenzelwe imveliso ephezulu yevolyuli, esi sikhululo sinetiya siqhuma esiqhubekayo sigqwesa ekuveliseni izikhongozelo ezivela kwi-15l. Uyilo lwayo oluguquguqukayo luvumela ukutshintshela kwegama elingenamthungo phakathi kokucwangciswa kwentloko-kunye ne-Multi-Dief, ukuqinisekisa ukusebenza kakuhle kwesayizi efanelekileyo. Unokuthenga i-15l i-15l isikhululo somoya wokubetha kumzi-mveliso wethu.

Umthamo: 15lUbunzima: 7.5T

Thumela uMbuzo

Ingcaciso yeMveliso Specification Application

Ukusuka kwiibhotile ze-shampoo kwibhotile yebhotile yokubetha ngomatshini, le Nt SHOL STATES SEBENZISIWEYO YOKUGQIBELA UKUSETYENZISWA KOMGANGATHO WOKUGQIBELA WOKUGQIBELA NOKUFUNDA. Phakamisa amandla akho emveliso ngala matshini onamandla noguquguqukayo.

Iimpawu kunye nezibonelelo

Intloko yomatshini yamkela indlela eyilwe ngokukodwa amandla ayi-15l, ukulawula izinga lokuhamba kunye nokuqinisekisa ububanzi benkqubo yokubumba, ukuqinisekisa ukuba nemveliso yemveliso, kunye nokuqinisekisa ukukhutshwa komgangatho we-15l.
Ukuthembela kwiinkqubo zolawulo lwe-elektroniki eziphezulu, ngokungathi zenziwe ngenkqubo ye-15l yenkqubo ye-15l, ukuseta ngokuchanekileyo kunye nolawulo lweeparamitha ezahlukeneyo, ukuba neqondo lokusebenza lilula kwaye linemisebenzi yohlengahlengiso lwemisebenzi. Abanini zithuthi banokwenza lula ukungalingani kweemeko zomsebenzi, ukuqinisekisa ukuba ukuveliswa kuyayijonga ngokupheleleyo iimfuno ezahlukeneyo zentengiso. Ingakwazi ukuvelisa izikhongozeli ze-15l kunye nolwakhiwo olunye olunjengokulala kunye ne-mbini-mbini, kwaye zinokwenza iimveliso ezikwimizi-mali ekhethekileyo, ukutya kunye neziselo, ukucoca imihla ngemihla kunye namanye amasimi.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15L
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450 PC/HR
3	Machine Dimension(L×W×H)	4.5M x2.2 M x2.8 M
4	Machine weight	7.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×500 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.8 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	75 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	100 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	30 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
