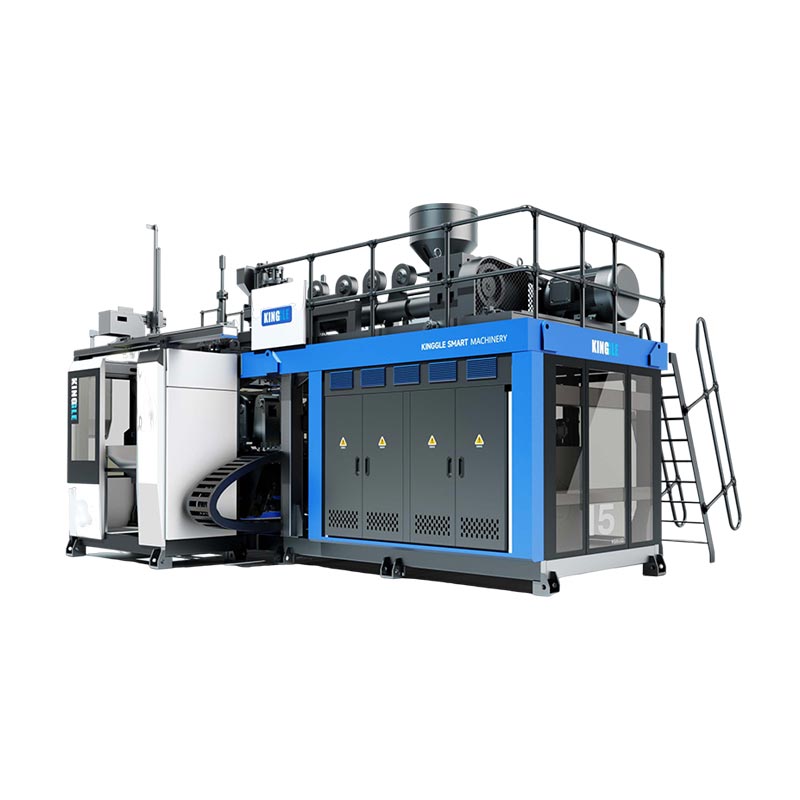

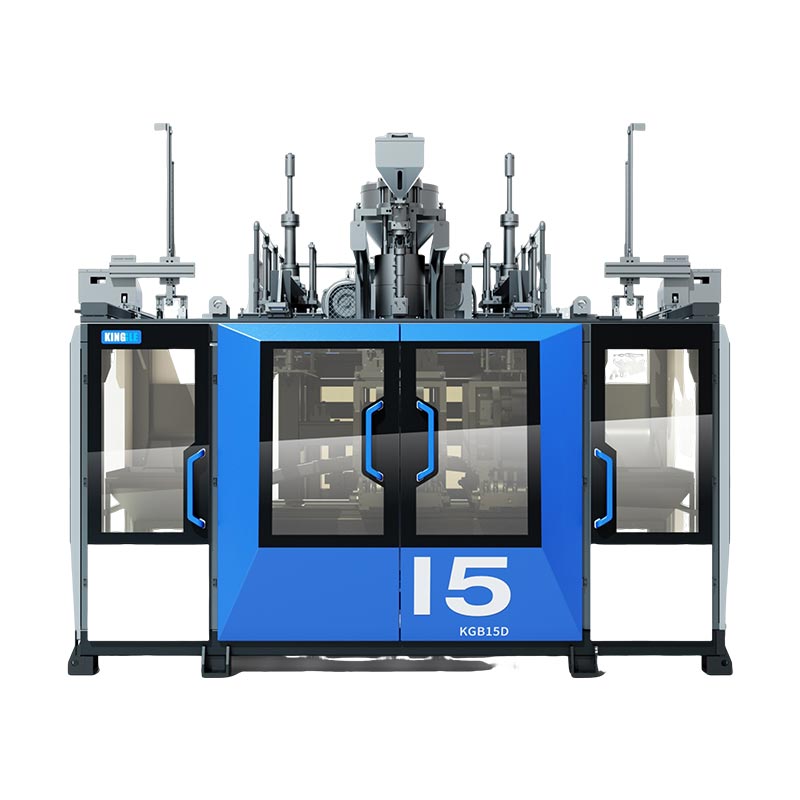

I-15l isitishi esiphindwe kabini kuvuthuza umatshini wokubumba

Model:KGB15D

Yandisa imveliso yakho kunye neSikhululo sethu seSikhululo seMveli esiPhakamileyo sokubetha, senzelwe izikhongozeli ukuya kwi-15l. Oku kusebenza kakhulu kwi-15L yesikhululo sesikhululo sokuvuthulula ibonelela ngolungelelwaniso oluguqukayo, kubandakanya i-2, 3, okanye i-4, okanye i-4 intloko yentloko ye-2, ukulungiselela ubungakanani besayizi.

Umthamo: 15lUbunzima: 12.5t

Thumela uMbuzo

Ingcaciso yeMveliso Specification Application

Ukusuka kwiibhotile zevolumu ezincinci ukuya kwizikhongozeli ze-15l, kubandakanya izicelo zeplastiki zeplastiki, esi sitishi sesikhululo sikaloliwe esiyi-15l Ilungele izicelo ezahlukeneyo, kubandakanya imichiza yemidlalo yemidlalo yemidlalo yemidlalo, enjenge-shampoo, i-shamprest ye-shamprent, kunye ne-cosmetics, ihambisa iziphumo ezikhethekileyo kwaye zandise imbuyekezo yakho kutyalo-mali.

Iimpawu kunye nezibonelelo

Ukusebenza kwesikhululo kabini, ukukhuthaza ukudityaniswa kwemveliso yemveliso, ukuphelisa kakhulu umjikelo wemveliso we-30l, phantse kabini kumgangatho wokuvelisa xa uthelekiswa nesitishi esinye, kwaye udibene kakuhle neemfuno zemveliso enkulu.
Ixhotywe ngesixhobo sobulo bokutshintsha esiphezulu, i-buffer ye-buffer ivuthulo lolawulo oluchanekileyo, ukutshintsha ngokukhawuleza, ireyithi yexesha elifutshane, ukuqinisekisa ukuveliswa kokuzinza.
I-Mitsc Plc PlC i-Plc, inkqubo yokuseta kwangaphambili yohlengahlengiso oluchanekileyo lweparamitha yokuvuthuza, amaqhosha esikhokelo kwabaqhubi ukuze bakwazi ukulungelelanisa nonxibelelwano olusebenzayo, kunye nonxibelelwano olulula.
Singavelisa izikhongozeli ze-15l ezinomaleko, ukubambisa kabini, iikawuba ezintathu, kunye nemigca ebonakalayo njengoko kufuneka, ilungele iimfuno zokupakisha kumashishini amaninzi njengemichiza, ukutya kunye namayeza.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15D
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450x2 PC/HR
3	Machine Dimension(L×W×H)	4.8M x2.9 M x2.8 M
4	Machine weight	12.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×550 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.1 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	110 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	120 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
