I-30l jerry ayinakukona isikhululo sokutsalwa kwesikhululo sokubetha

Model:KGH30L

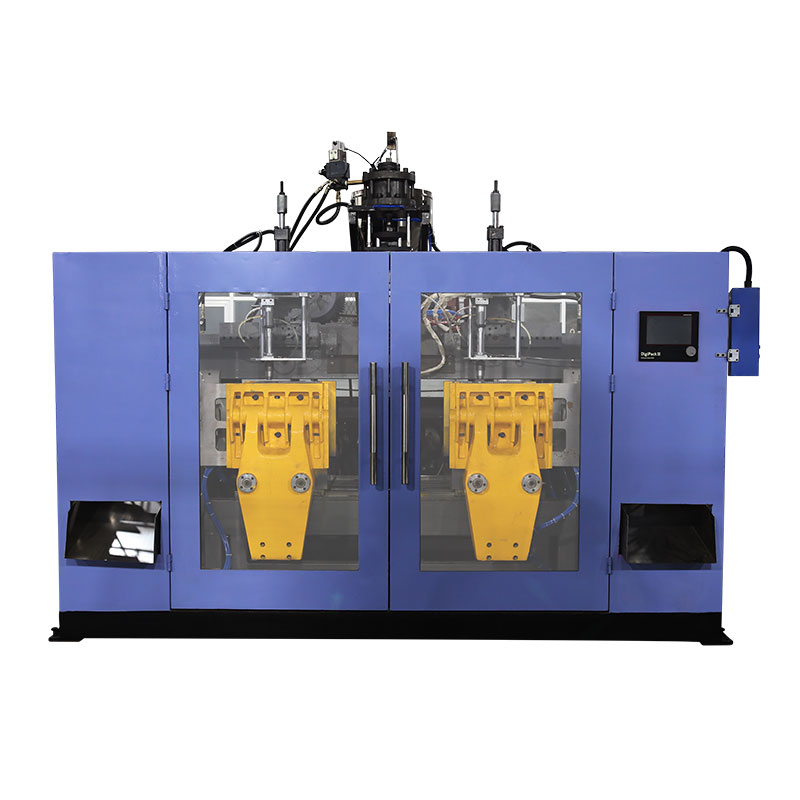

Supercharge your packaging production with the KGH30L 30L Jerry Can Single station Extrusion Blow Moulding Machine, the ultimate 30L jerry can extrusion blow moulding machine that sets a new standard for 20liter drum machine applications! Isitayile esingaqhelekanga esijikelezayo ukubonelela ngamandla aqhelekileyo aqhelekileyo, igqibelele kwilitha ye-18 yelitha i-Words ifuna ukuba i-20l imigqomo kunye ne-jerrycans, kuyanceda ukoyisa umgangatho we-jerm-tier.

Umthamo: 30lUbunzima: 22.5t

Thumela uMbuzo

Ingcaciso yeMveliso Specification Application

Supercharge your packaging production with the KGH30L, the ultimate 30L Jerry Can Single station Extrusion Blow Moulding Machine that sets a new standard for 20L Izicelo zedrum. Ifaka isixhobo sengalo esijikelezayo, oku Umatshini uqinisekisa ngakumbi nokuba yi-clamples, ukuhambisa iziphumo ezingenasiphoso ixesha. Ilungele ngokugqibeleleyo i-18l ukuya kwi-20l imigqomo kunye nejerry cans, i-kghh30l Idibanisa ukusebenza kakuhle kunye nomgangatho ophezulu we-tier ukuze ikuncede ulawule Intengiso. Yenzelwe ukuchaneka kunye nokuqina, umatshini yeyona ilungileyo Isisombululo kumashishini afuna ukuphakamisa amandla abo emveliso kwaye Veza iimveliso zokupakisha ipremiyamu.

Iimpawu kunye nezibonelelo

Yandisa imveliso yakho kunye nesikhululo sethu esinye esiqhubekayo sokubetha, senzelwe izikhongozeli ukuya kwi-30l. Ngocwangciso oluguqukayo (2, 3, okanye olu-4 lweeseti zeNtloko yeNtloko), iphatha uluhlu olubanzi lwe-fayili, ukusuka kwiibhotile ezincinci ukuya kwizikhongozeli ezinkulu ze-30l kunye nemiba yenkqubo yeplastiki kunye nomgangatho oqinisekileyo.
Eyona nto ifanelekileyo kwizicelo ezinjenge-shampoo, impahla yokuhlamba iimpahla, kunye nokupakisha i-cosmetics, lo matshini ubonelela ngemveliso yokukhawuleza kwesantya ngelixa ugcina umgangatho ophezulu. Ukusetyenziswa kwezinto zokusebenza kunye noyilo olululo loncedo lokunciphisa inkunkuma kunye nokunyusa iziphumo, kusenza isisombululo esisebenzayo esibonisa ukubuya kwakho kutyalo-mali.

Specifications

serial number	Material PE、PP、PVC、PA...	High speed movement mode(curved arm)
serial number	Material PE、PP、PVC、PA...	Machine model:KGH30L
Specifications
1	Max container capacity	30 L
2	Output(dry Cycle)	450 PC/HR
3	Machine Dimension(L×W×H)	4.8 M x 2.1 M x 3.5 M
4	Machine weight	22.5T
Clamping Unit
1	Clamping force	300 KN
2	Mold platen size(W×H)	630 MM x 680 MM
3	Platen openingstroke	450 MM -1000 MM
4	Platen moving stroke	750MM
5	Max mold size(W×H)	730 MM - 680 MM
6	Mold thickness	480 MM - 580 MM
Power
1	Servooil pump motor power	22 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	180 L/min
7	Average energy consumption	70 KW -80 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	180 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.9 KW
7	Extruder motor power	75 KW
Die head
1	Number of heating sections	3 * 8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	280 MM
5	(PE)Accumulator weight	170 MM
