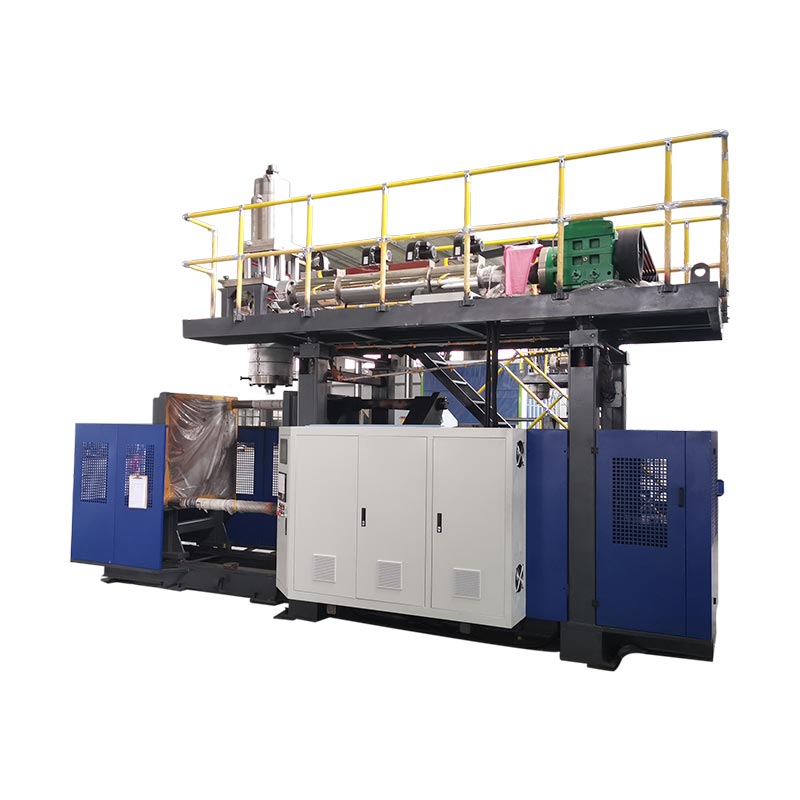

I-160l idada yomatshini wokubetha

Model:KGB110F

Ukwenzela ukuxhasa umzi-mveliso we-float, i-KGB110F 160l i-160l yedada ye-Sloolding ithembekile ngabavelisi bomatshini behlabathi. Kwizicelo zeplastiki yeplastiki efana ne-cube i-cube / i-solar edadayo / i-marine idada kunye namaqonga adadayo, iqinisekisa ukuvelisa iindleko kunye nokuqina kwexesha elide. Sukukhumbula-nxibelelana nathi ukuze uguqule imveliso yakho namhlanje!

Umthamo: 160lUbunzima: 24t

Thumela uMbuzo

Ingcaciso yeMveliso Specification Application

Imodeli esemgangathweni ye-KGB110F, intloko efundiswayo entloko i-veling yomatshini, Kubandakanya i-moog ye-MOOG 100 ingalo, ingalo yerobhothi, kunye nezantsi Inkqubo, ukuphucula imveliso kunye nomgangatho wemveliso. Le i-160l i-sloat yomatshini wokuvola Ilungele izicelo ezahlukeneyo, kubandakanya umgubo wekhemikhali wokubetha Izisombululo, iplastiki yokutsalwa kweplastiki yokubetha ngomatshini, ukubetha okuhamba Izicelo zomatshini wokubumba, kunye nemveliso yokupakishwa kwemichiza Imiphanda, iitanki zemoto, i-toy bow boolding Izithintelo, ifanitshala yamayeza, i-zuys edadayo, izitulo kunye neetafile.

Iimpawu kunye nezibonelelo

Ukumba ubunzulu kubuchule betekhnoloji kunokubonelela ngezisombululo zemveliso eyodwa yokulinganisa amandla aphezulu kubathengi abalandela ukusebenza ngeendleko; Ingakhela ukwahlula-hlula kabini okanye i-Andli-Weter ye-Andli-Calm
Ukuxhobisa imisebenzi ephambili ye-110k yomatshini wokubetha ngenkqubo yamandla eyomeleleyo nethembekileyo ye-hydraulic. Usulelo lwamandla oluqhubekayo noluzinzileyo luqinisekisa ukuvulwa nokuvulwa okunamandla kunye nokuvalwa kokusebenza kunye nokusebenza komxhasi, kwaye kubuso bemveliso yexesha elide kunye nendlela ephezulu yokugcina izinto ezilungileyo kunye nokukhuphela iimveliso ezisemgangathweni.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB110F
Specifications
1	Max container capacity	160 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M × 5.2 M
4	Machine weight	24T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1100 MM×1900 MM
3	Platen openingstroke	600 MM -1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	600 MM ×1900 MM
6	Mold thickness	610 MM - 750 MM
Power
1	Servooil pump motor power	25 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	180 Kg/hr -220 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	75(90) KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.5 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	20 L
5	(PE)Accumulator weight	15 KG
